M17 MTB-Rahmen

• Tapered headtube-reduce cross section area, improve performance, reduce wind resistance and enhance aerodynamic effect
• BB92 buttom bracket, wider and stronger torsional rigidity
• Direct mount front derailleur-get the best quality and reliability
• 12x142mm Rear Spacing
• 2 year warranty for manufacturer defects, lifetime crash replacement program ( discount for new frame )

Fancy cross-country mountain biking? Want a waif-like carbon steed to help you to a step on the  podium? But you do not want to spend a crazy amount to make this happen? We have built you your dream frame then. Our M17 carbon fibre XC mountain bike frame is just for you.

We have used aerospace grade carbon fibre to make sure that the ride quality of the M17 frame is out of the world. We also know that even if a frame is comfortable that alone will not win races, so we have worked hard to make sure the frame is light and super stiff where you need it to be stiff. We even made sure that your cables stay hidden through our internal routing.

To create a more substantial bottom bracket area we have used a BB92 bottom bracket shell. This gives our engineers more space to play with and look at the size of our chainstays, and down tube, your pedaling effort will not be flexing ant of these carbon tubes. Our chain stays run all the way to a 142 x 12mm rear thru axle, meaning your wheel will have no room to move it will be held tightly in place.

The downtube mates up with our tapered headtube, you will have no problem finding a fork to fit this XC beast. This frame will then go precisely where you point it, and it will not let you take B-lines you will be A-line through all the courses. Our carbon seat stays, and top tube though are designed to help manage the stiffness from below and cancel out any vibrations, adding a bit of vertical compliance to your ride.

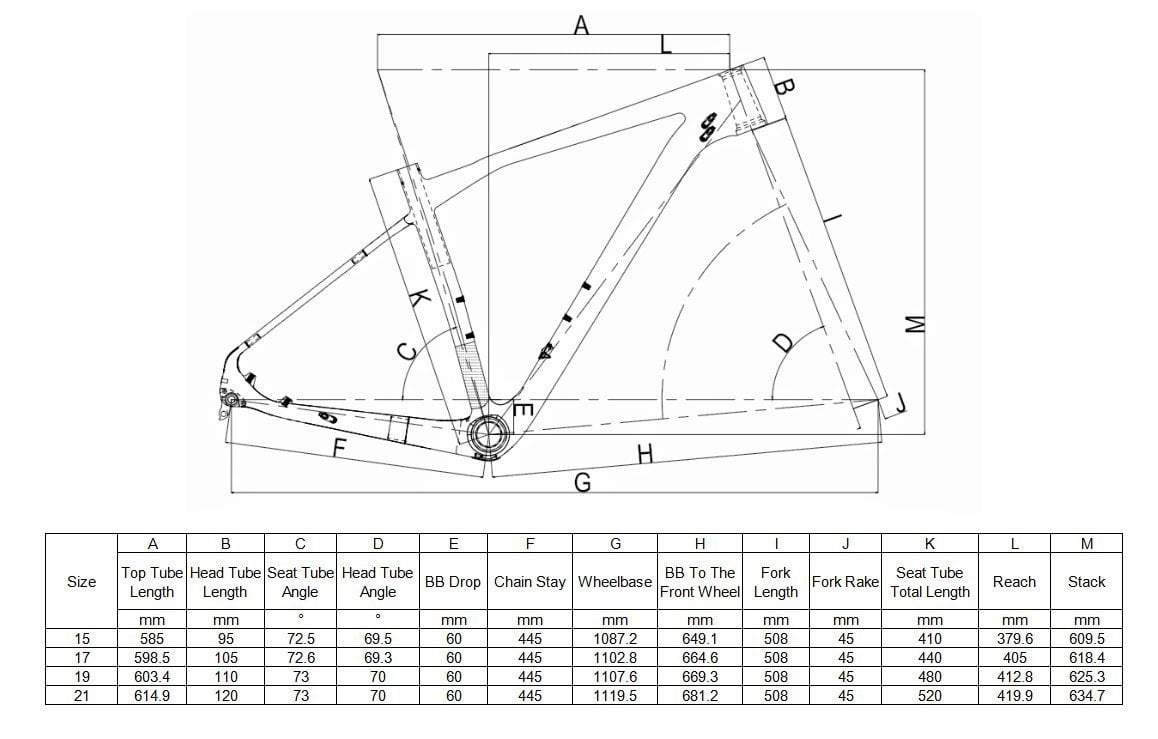

Specification
